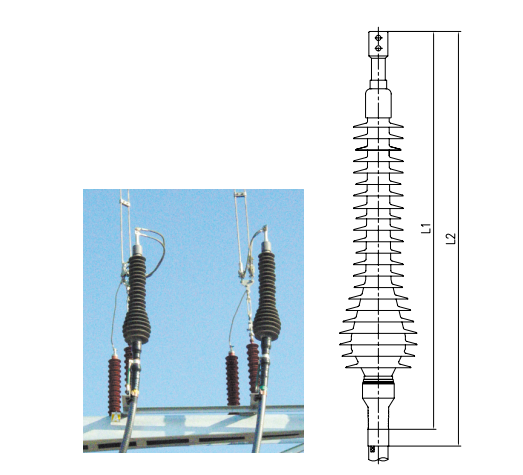

66-138kV Fully Prefabricated Dry-Type Cable Termination

Standards Compliance:
IEC60840 "Power cables with extruded insulation and their accessories for rated voltages of 30 kV (Um=36 kV) up to 150 kV (Um=170 kV)"
GB/T11017.3 "Power cables with cross-linked polyethylene insulation for rated voltage of 110 kV and their accessories - Part 3: Cable accessories"

Application Range:
Rated Voltage: 48/66kV, 64/110kV, 76/138kV
Applicable Cross Section: 240-1600mm², 240-1600mm², 240-1600mm²

Product Models:
Long Version: YJZWG4-L
Short Version: YJZWG4-S
Suitable for: Outdoor applications in severe pollution levels (Grade E)

Technical Characteristics:
Independently developed with high technological content, and protected by national patents. Invention Patent Number: ZL 2010 10582216.5.
Made from silicone rubber with a flexible integral structure, combining the stress cone, and insulation body, and sheds into one piece.
Features alternating large and small sheds with no longitudinal mold seams, eliminating mechanical stress and enhancing the product’s expected service life.
Utilizes special liquid silicone rubber with high resistance to cracking, high strength, and high elasticity, making it suitable for heavily polluted areas.
The dry-type structure does not require the addition of any insulating oils or casting agents, preventing oil leakage.
Lightweight, only 1/10th the weight of traditional porcelain terminals.
The manufacturing height can be adjusted according to user requirements.
Installation positions are flexible, allowing for vertical or inclined placements without affecting operational quality.
The product is explosion-proof and flame-retardant, offering high safety and is environmentally friendly.
