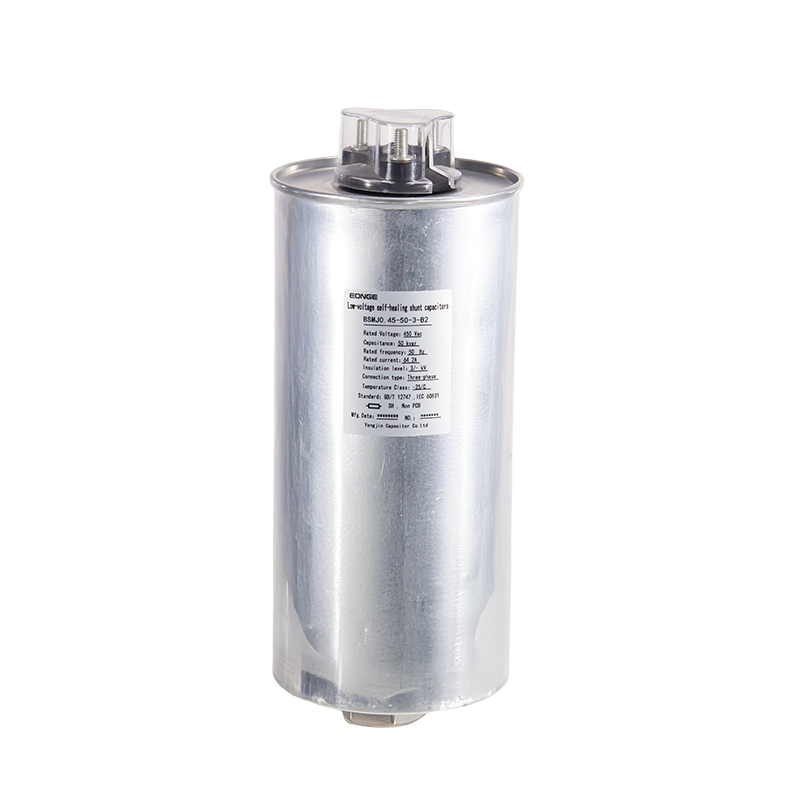

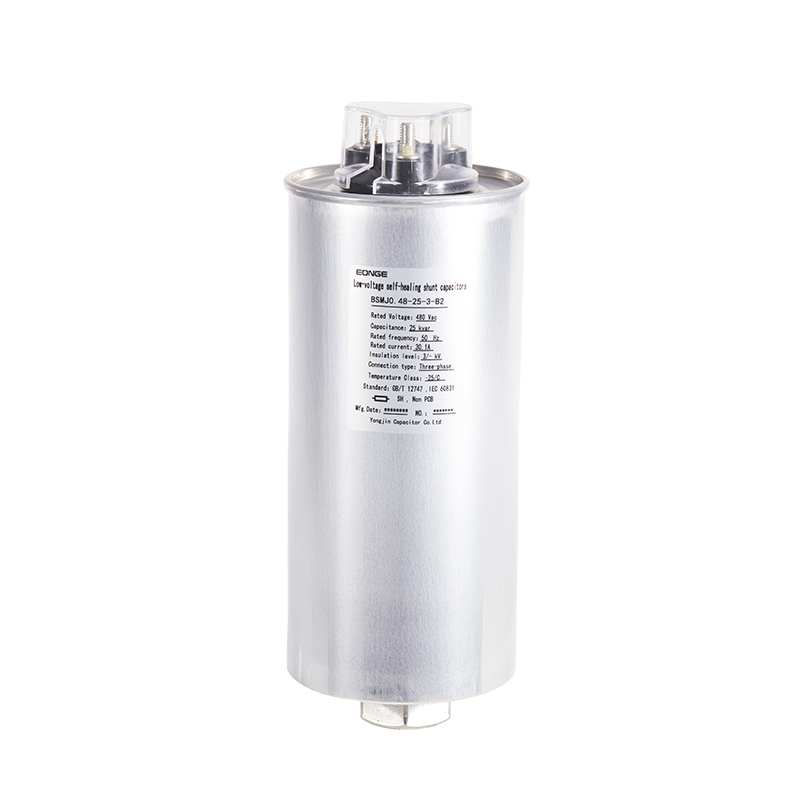

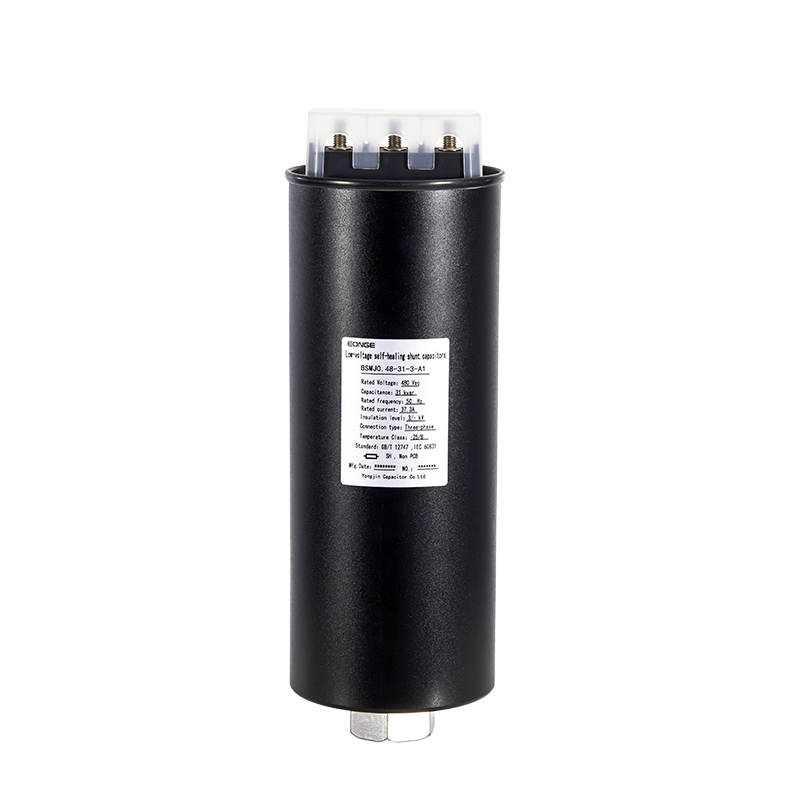

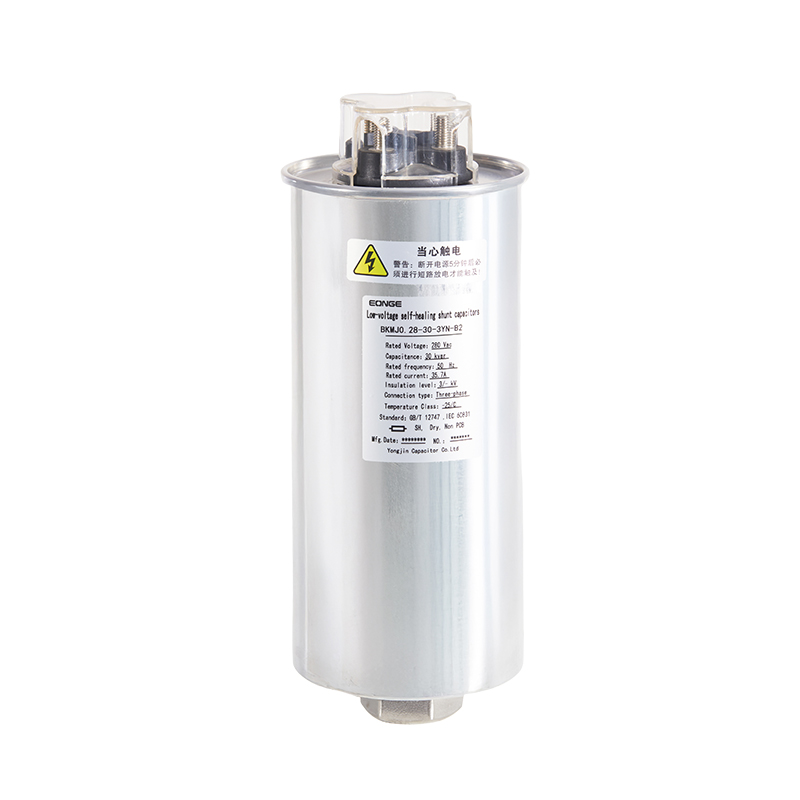

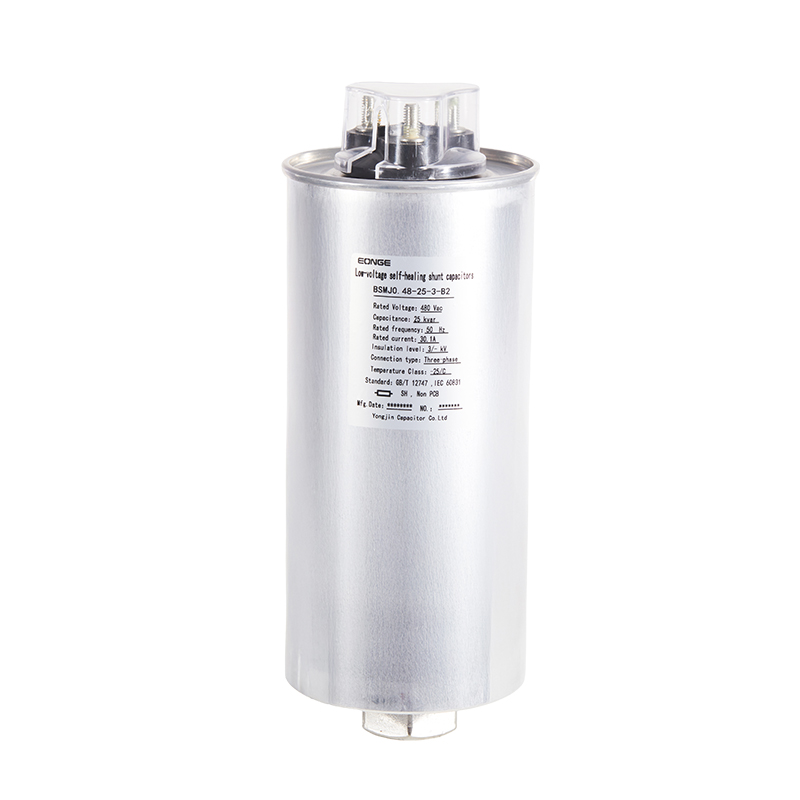

BSMJ-B Cylindrical Low Voltage Shunt Capacitor

Rated Voltage:

130～1000V

Rated Capacity:

2.5～50kvar

Capacitance Tolerance:

-5%～+10%

Dielectric Loss:

≤0.2W/kvar

Pressure-resistant Performance:

Apply an AC voltage of 2.15 kV between terminals for 10seconds, with no permanent breakdown or flashover.
Apply an AC voltage of 3kV or (2Un +2kV) between the terminal and the casing for 10 seconds, with no permanent breakdown or flashover occurring.

Maximum Permissible Overcurrent:

1.1UN, no more than8hours every24 hours

Maximum Permissible Overcurrent:

1.3 IN
Self-discharge in 3 minutes. The voltage drops to 75V or below within 3 minutes after power-off. Lower voltage levels are available upon customer request.

Altitude:

≤2000m

Ambient Temperature:

 -25℃～+50℃
