Custom BSMJ-A Intelligent Power Capacitor Unit

Home / Products / Low Voltage Capacitors and Equipment / Low Voltage Power Capacitors / BSMJ-A Intelligent Power Capacitor Unit

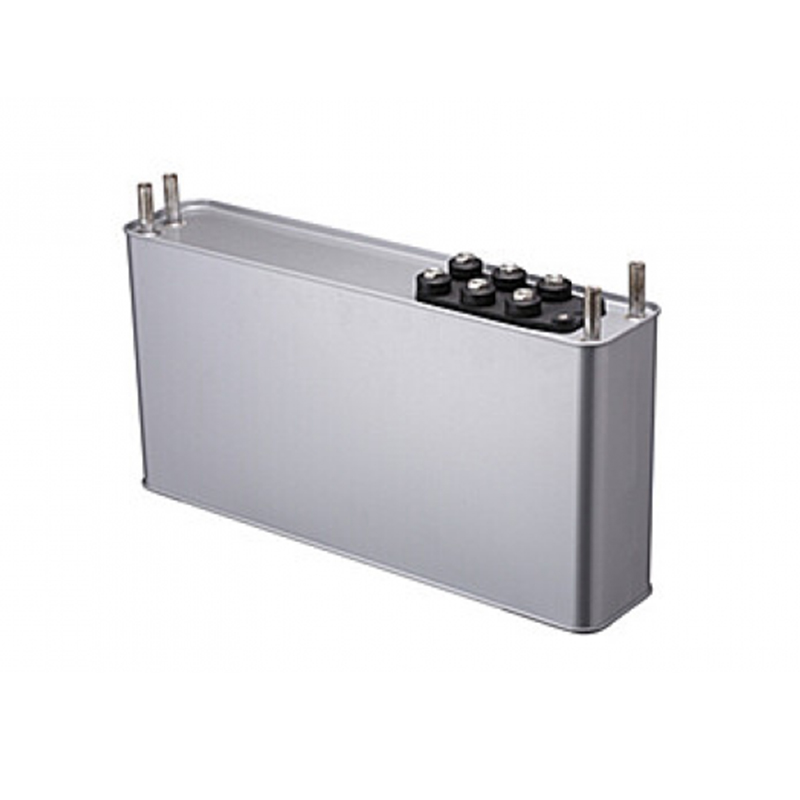

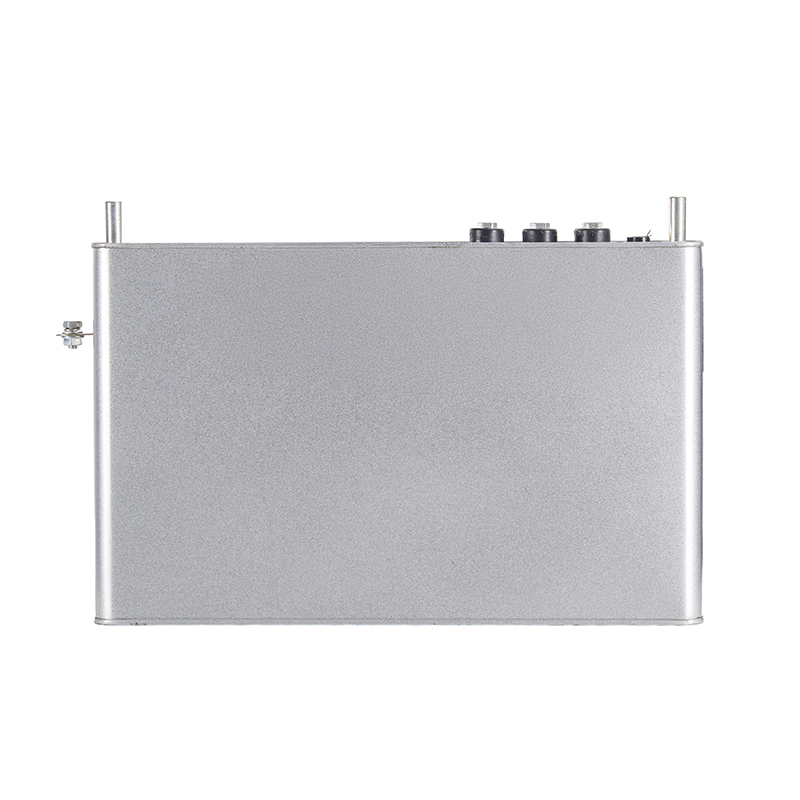

BSMJ-A Intelligent Power Capacitor Unit
  • BSMJ-A Intelligent Power Capacitor Unit
Low Voltage Power Capacitors

BSMJ-A Intelligent Power Capacitor Unit

Introduction
Purpose: BSMJ-A Intelligent Power Capacitor Unit is used in various low-voltage intelligent capacitors, including dual-cabinet type, integrated type, and harmonic-resistant type applications.

Product Features:
Rated Voltage: 0.25~0.525 kV
Capacity Range: 5~40 kbar
Cast iron casing with internal threaded terminals and built-in overpressure protection.
Low design field strength, long lifespan, low failure rate, and good capacity stability.
Mature technology with high cost-effectiveness.

Contact Us
PREV：BSMJ-A Split Phase Compensation Shunt Capacitor
NEXT：BSMJ-A Low Voltage Parallel Capacitor

  • Model

    Rated voltage

    Rated Capacity

    Capacitance

    Rated current

    H

    Structure type

    KV

    KVar

    μF

    A

    mm

    250V split phase compensation

    BSMJ0.25-5-3YN-A4

    0.25

    5

    254.6

    6.7

    170

    A4

    BSMJ0.25-7.5-3YN-A4

    0.25

    7.5

    382.0

    10.0

    170

    A4

    BSMJ0.25-10-3YN-A4

    0.25

    10

    509.3

    13.3

    170

    A4

    BSMJ0.25-12.5-3YN-A4

    0.25

    12.5

    636.6

    16.7

    170

    A4

    BSMJ0.25-15-3YN-A4

    0.25

    15

    763.9

    20

    220

    A4

    280V split phase compensation

    BSMJ0.28-10-3YN-A4

    0.28

    10

    406

    11.9

    170

    A4

    BSMJ0.28-15-3YN-A4

    0.28

    15

    609

    17.9

    220

    A4

    BSMJ0.28-20-3YN-A4

    0.28

    20

    812

    23.8

    270

    A4

    BSMJ0.28-25-3YN-A4

    0.28

    25

    1015

    29.8

    320

    A4

    BSMJ0.28-30-3YN-A4

    0.28

    30

    1218

    35.7

    320

    A4

    450V three-phase compensation

    BSMJ0.45-5-3-A4

    0.45

    5

    78.6

    6.7

    170

    A4

    BSMJ0.45-10-3-A4

    0.45

    10

    157.2

    12.8

    170

    A4

    BSMJ0.45-15-3-A4

    0.45

    15

    235.8

    19.2

    170

    A4

    BSMJ0.45-20-3-A4

    0.45

    20

    314.4

    25.7

    170

    A4

    BSMJ0.45-25-3-A4

    0.45

    25

    393.0

    32.1

    220

    A4

    BSMJ0.45-30-3-A4

    0.45

    30

    471.6

    38.5

    270

    A4

    480V three-phase compensation

    BSMJ0.48-10-3-A4

    0.48

    10

    138.2

    12.0

    170

    A4

    BSMJ0.48-15-3-A4

    0.48

    15

    207.2

    18.0

    170

    A4

    BSMJ0.48-20-3-A4

    0.48

    20

    276.3

    24.1

    220

    A4

    BSMJ0.48-25-3-A4

    0.48

    25

    345.4

    30.1

    220

    A4

    BSMJ0.48-30-3-A4

    0.48

    30

    414.5

    36.1

    320

    A4

    BSMJ0.48-40-3-A4

    0.48

    40

    552.6

    48.1

    320

    A4

    Model

    Rated voltage

    Rated Capacity

    Capacitance

    Rated current

    H

    Structure type

    KV

    KVar

    μF

    A

    mm

    250V split phase compensation

    BSMJ0.25-10-3YN-A5

    0.25

    10

    509.3

    13.3

    110

    A5

    BSMJ0.25-15-3YN-A5

    0.25

    15

    763.9

    20

    130

    A5

    BSMJ0.25-20-3YN-A5

    0.25

    20

    1018.6

    26.7

    170

    A5

    BSMJ0.25-25-3YN-A5

    0.25

    25

    1273.2

    33.3

    170

    A5

    BSMJ0.25-30-3YN-A5

    0.25

    30

    1527.9

    40

    210

    A5

    BSMJ0.25-40-3YN-A5

    0.25

    40

    2037.2

    53.3

    250

    A5

    450V three-phase compensation

    BSMJ0.45-5+5-3-A5

    0.45

    10

    157.2

    12.8

    110

    A5

    BSMJ0.45-5+10-3-A5

    0.45

    15

    235.8

    19.2

    130

    A5

    BSMJ0.45-10+20-3-A5

    0.45

    30

    471.6

    38.5

    170

    A5

    BSMJ0.45-20+20-3-A5

    0.45

    40

    628.5

    51.3

    170

    A5

    BSMJ0.45-25+25-3-A5

    0.45

    50

    785.92

    64.2

    210

    A5

    BSMJ0.45-30+30-3-A5

    0.45

    60

    943.1

    77.0

    270

    A5
