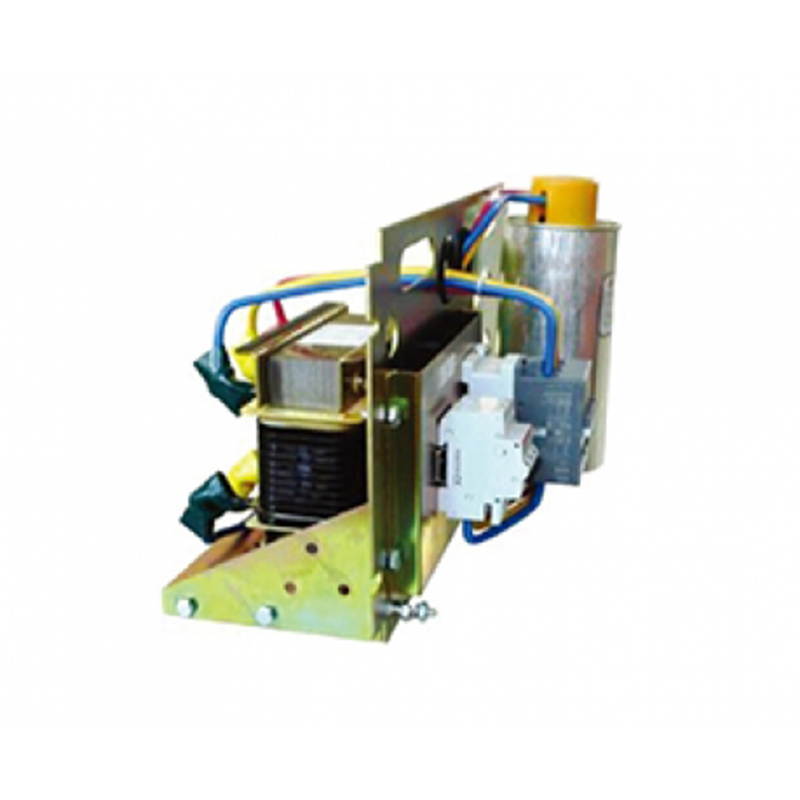

Why a DC Link Capacitor Appears in Variable Frequency Drive Circuits

Variable frequency drives show up just about everywhere these days. Walk through any factory, pump station, or commercial building, and chances are good that several drives are running somewhere nearby. People use them to control motor speeds, cut energy use, and manage starting currents. Inside each drive, a handful of key components work together to turn incoming line power into something the motor can use at different speeds.

Among those internal parts, one piece tends to draw questions from maintenance crews and technicians. That part sits in a specific spot within the circuit, bridging two sections that do very different jobs. A DC Link Capacitor occupies this middle ground, and its role often gets misunderstood by people who only look at the drive from the outside. Getting familiar with what this part does helps when planning replacements or talking with a DC Link Capacitor Supplier about what the application actually needs

What Happens to AC Power Before It Reaches the Motor

Power comes into the drive from the building supply as alternating current. That waveform goes up and down, crossing zero twice every cycle. Motors can run on that kind of power, but only at one fixed speed determined by the line frequency. Changing that speed requires a different approach.

Inside the drive, the first thing that happens involves sending that AC through a rectifier. Rectifiers use diodes arranged in a particular pattern to flip the negative half of the waveform into positive territory. What comes out is technically direct current, but it still has big bumps in it. Those bumps follow the shape of the original AC wave, rising and falling with each cycle.

Those bumps cause trouble further down the line. The next section of the drive uses switching devices that need a steady voltage to turn on and off cleanly. If the voltage wobbles around, the switching gets messy. That messiness shows up at the motor as noise, vibration, and wasted energy.

Where Does the DC Link Capacitor Sit Within the Drive Circuit

Looking at the internal layout of a typical drive reveals a clear path from input to output. Power flows from the terminal strip into the rectifier, then across a section called the DC link, then into the inverter, and finally out to the motor. The DC link connects the rectifier and the inverter, acting like a hallway between two rooms.

Inside that hallway sits one or more capacitors connected across the bus bars. A DC Link Capacitor sits between the positive and negative rails, seeing the full voltage that comes out of the rectifier. That position puts the component right in the middle of the action, dealing with whatever the rectifier sends its way.

• The capacitor connects across the bus, not in line with the current.
• Its value gets chosen based on how much ripple needs smoothing.
• It handles continuous voltage stress during normal running.
• Its internal construction suits this specific role, not general filtering.

That hallway position gives the component its name. The DC link refers to that connecting section, and the capacitor belongs right there in the middle.

Why Does the Inverter Stage Require Stable DC Power

The inverter stage contains switches that turn on and off at high speed. Those switches create a pattern of pulses that the motor sees as an alternating waveform. The quality of that waveform depends on how steady the DC supply stays while the switches do their work.

Think about what happens when the DC voltage has ripple. At the top of the ripple, the switches see high voltage. At the bottom, they see low voltage. Every cycle, the switches produce pulses that vary in strength. Those variations pass straight through to the motor, causing it to jerk slightly, hum loudly, and run warmer than it should.

Steady DC voltage lets the switches do their job cleanly. The motor runs smoothly, with less noise and less heating. Getting that steadiness requires something to fill in the gaps between the bumps coming from the rectifier.

That is where the DC Link Capacitor enters the picture. It charges up when the rectifier output peaks and releases energy when the output dips. That action keeps the voltage from dropping too low between cycles.

How Does the DC Link Capacitor Handle Voltage Ripple

Ripple happens naturally when a rectifier turns AC into DC. A three-phase rectifier produces ripple that cycles six times per line cycle. A single-phase rectifier produces ripple twice per cycle. The capacitor deals with that ripple by storing charge during the peaks and giving it back during the valleys.

When the rectifier output climbs to its peak, the capacitor fills up. As the output falls toward zero, the capacitor empties slightly to keep the bus voltage from dropping too far. That charge and discharge happens continuously, over and over, as long as the drive stays on.

How well this works depends on the capacitor's size relative to the load and ripple frequency. More capacitance gives smoother DC, but also adds cost and takes up space. Less capacitance lets more ripple through, which hurts inverter performance. Sizing requires a practical balance.

What Role Does Energy Storage Play During Load Changes

Motor loads change constantly in real applications. Pumps see different head pressures. Fans deal with changing duct resistance. Conveyors carry varying material loads. Every change in load changes how much current the motor draws.

When a motor speeds up, it pulls extra current to get moving. That current has to come from somewhere. The rectifier can only supply so much based on the AC input. During those short bursts of extra demand, the DC Link Capacitor kicks in with stored energy to fill the gap until the load settles down or the rectifier catches up.

When a motor slows down quickly, the mechanical load drives the motor, turning it into a generator. That regeneration sends energy back into the DC bus. The capacitor takes that energy in and stores it, keeping the voltage from climbing too high. Some drives also hold that energy for later use, which improves overall efficiency.

That storage action takes pressure off the rectifier and the power supply feeding it. Without the capacitor, the rectifier would need to handle every load change directly, which would require oversizing and put extra stress on the AC supply. The capacitor acts as a buffer, smoothing out short-term variations in power demand.

Why Does the DC Link Capacitor Affect Drive Reliability

People who work with drives for a while eventually run into problems traced back to this part. The DC Link Capacitor faces stress during every minute the drive stays powered up. Voltage, current, and heat all work together over time to wear down the internal materials.

Voltage stress comes from the steady DC across the terminals. That voltage pushes against the dielectric layer inside the capacitor, causing gradual changes in its properties. Current stress arrives through the ripple current that flows in and out many times each cycle. That movement creates heat even when the drive runs lightly loaded.

Heat deserves extra attention here. The capacitor warms up during normal work, and that warmth speeds up chemical reactions inside. Higher temperatures cause the electrolyte to break down or change composition over months and years. As the materials degrade, capacitance drops and internal resistance climbs.

A few signs suggest a capacitor nearing the end of its useful run:

• The drive trips more often on overvoltage faults.
• Motor operation gets noisier or rougher than before.
• DC bus voltage shows more ripple than expected.
• The capacitor case bulges or shows leaking fluid.
• Drive performance worsens during acceleration or heavy pulls.

When those signs show up, replacing the part often brings things back to normal. Finding replacements through a good DC Link Capacitor Supplier helps make sure the new part matches what the drive originally had.

What Design Considerations Apply to DC Link Capacitor Selection

Picking a capacitor for a drive application means matching several numbers to actual working conditions. Voltage rating comes first. The part has to handle the full DC bus voltage plus any spikes from regeneration or line surges. Running too close to the voltage limit shortens life quickly.

Capacitance value affects ripple handling directly. More capacitance smooths more ripple but adds cost and takes up space. The right value balances ripple reduction against practical limits. Engineers usually figure out the minimum capacitance needed to keep ripple within acceptable range.

Ripple current rating matters because it ties directly to heating. The capacitor has to handle the ripple current without going over its temperature limit. Higher ripple current ratings often come with bigger size or different internal build. Matching the rating to actual working conditions prevents early failure.

Physical constraints also come into play. Capacitors come in various shapes and mounting styles. Some use screw terminals for high-current connections. Others use snap-in or lug terminals for lower current work. The space inside the drive enclosure decides what fits.

• Voltage rating higher than expected bus voltage
• Capacitance value meeting ripple needs without oversizing
• Ripple current rating matching actual working conditions
• Physical size and mounting style fitting available space
• Operating temperature range covering the enclosure environment

Talking with an experienced DC Link Capacitor Supplier helps in getting these parameters right. Suppliers who know drive applications can point toward appropriate parts for specific needs.

How Does Operating Environment Influence Capacitor Performance

Drive enclosures hold heat inside. The rectifier makes heat. The inverter makes heat. The capacitor makes its own heat from ripple current. All that warmth builds up inside the box unless ventilation or cooling carries it away.

Temperature affects capacitor life in a known way. Higher operating temperature shortens expected service life. That link makes thermal management important for drive reliability. Good airflow, proper spacing, and adequate ventilation all help keep temperatures manageable.

Installation habits affect temperature too. Placing capacitors close to other hot parts raises their temperature. Leaving room around the capacitor allows air to move and remove heat. Some drives use fans to push air through the enclosure and lower internal temperatures.

Altitude and surrounding conditions add other factors. Higher altitudes mean thinner air and less cooling. Dusty places clog vents and reduce airflow. Humid conditions affect terminal connections and encourage corrosion. Each factor adds stress the capacitor faces during normal running.

What Does Routine Maintenance Look Like for This Component

Many drive maintenance plans ignore the DC Link Capacitor until something breaks. A more practical approach involves regular checks that catch problems early.

Looking at the part catches obvious issues. Bulging cases, leaking fluid, or discolored terminals warn of trouble before failure happens. Checking bus voltage with a meter shows whether ripple levels have grown. Drives with built-in monitoring often display bus voltage and ripple values on their screens.

Measuring capacitance takes special gear but gives the most reliable view of condition. Handheld meters can measure capacitance while the part stays in the circuit, though readings may shift from other parts connected across the bus. Comparing readings to nameplate values shows how much capacitance has faded.

Replacement timing depends on working conditions rather than the calendar. Drives running in cool, clean places see longer capacitor life than those in hot, dusty spots. Keeping records of capacitor changes helps set practical intervals for a given setup.

• Looking for bulging or leaking cases
• Watching bus voltage for increased ripple
• Checking capacitance during regular maintenance
• Logging temperatures inside the enclosure
• Changing parts based on condition rather than fixed schedules

Drive failures often trace back to the DC Link Capacitor. Its spot in the circuit subjects it to steady stress, and its condition affects everything downstream. A capacitor working well supports clean inverter output, reliable motor operation, and longer drive life.

Ignoring this part leads to slow performance loss. Motors run hotter, drives trip more often, and energy use creeps up. Paying attention to capacitor condition avoids those problems and extends equipment life.

The part itself can be replaced. Many drives allow field replacement of the capacitor without swapping out the whole drive. That makes regular checks and timely replacement a practical maintenance job rather than a major repair event.

Picking quality parts from a DC Link Capacitor Supplier who understands drive applications gives a better starting point. Following good installation practices and watching operating conditions keeps the part working as intended. Those steps make drive reliability more predictable and maintenance more manageable.

The DC Link Capacitor sits in the middle of every variable frequency drive, connecting the rectifier and inverter stages. Its work involves smoothing ripple from the rectifier, storing energy for load changes, and keeping voltage steady for the inverter. Those tasks directly affect how the drive runs and how long it lasts.

Knowing what this part does helps technicians, engineers, and maintenance crews make smarter choices. Spotting the signs of capacitor wear allows for timely replacement before failures happen. Considering operating conditions and installation habits leads to better reliability.

Working with a capable DC Link Capacitor Supplier supports those efforts by providing suitable parts for specific applications. Good suppliers understand what this component goes through and offer parts that match the requirements.

This part plays a quiet but essential role in drive operation. It does not draw attention when working properly. But when it starts to fail, the effects show up through the whole system. Paying attention to it, understanding its job, and maintaining it properly keeps drives running longer and more reliably.
