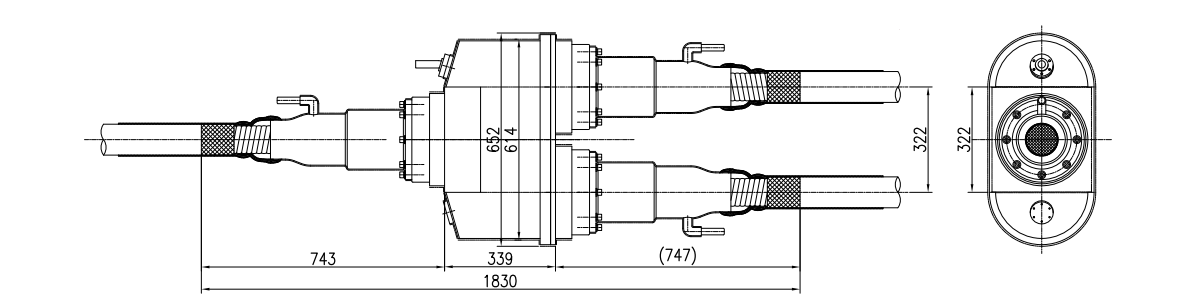

110kV High Voltage Cable Branch Joint

Cable branch joint solutions, including branch cable joint and Power cable joint products, are engineered to provide stable, secure, and efficient cable connections for power distribution and electrical transmission systems.

Standards Compliance:
IEC60840: "Power cables with extruded insulation and their accessories for rated voltages of 30kV (Um=36kV) up to 150kV (Um=170kV)"
GB/T11017.3: "Power cables with cross-linked polyethylene (XLPE) insulation and their accessories for rated voltages of 110kV – Part 3: Cable accessories"

Application Range:
Rated Voltage: 64/110kV
Applicable Cross-Section: 240-1600mm²

Product Model:
YJJFG

Technical Characteristics:
The main body of the branch joint is pre-assembled in our factory, requiring only the insertion of the cable head during on-site installation.
Made from special resin materials using modern casting techniques, each unit undergoes strict quality control with individual X-ray inspection.
Designed to be compact, lightweight, and occupying minimal installation space, suitable for cable trenches, wells, and direct burial applications.
Optional waterproof and explosion-proof shells can be selected based on the installation environment.
