10-35kV Prefabricated Cable Termination

Standards Compliance:
IEC 60502.4 "Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV) - Part 4: Test requirements on accessories for power cables"
GB/T 12706.4 "Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1,2 kV) up to 35 kV (Um = 40.5 kV) - Part 4: Test requirements on accessories for power cables"
JB/T 8503.1 "Assembled prefabricated accessories for power cables with rated voltages from 6 kV (Um = 7.2 kV) up to 35 kV (Um = 40.5 kV) - Part 1: Terminations"
T/CEC 120 "Technical specification for prefabricated cable accessories with rated voltage of 35 kV and below"

Applicable Range:

Rated Voltage: 8.7/15kV, 12/20kV, 26/35kV
Applicable Cross-section: 25-630mm²
Altitude: 0-4500m
Ambient Temperature: -40 to +45°C
Pollution Level: Level E

Product Models:

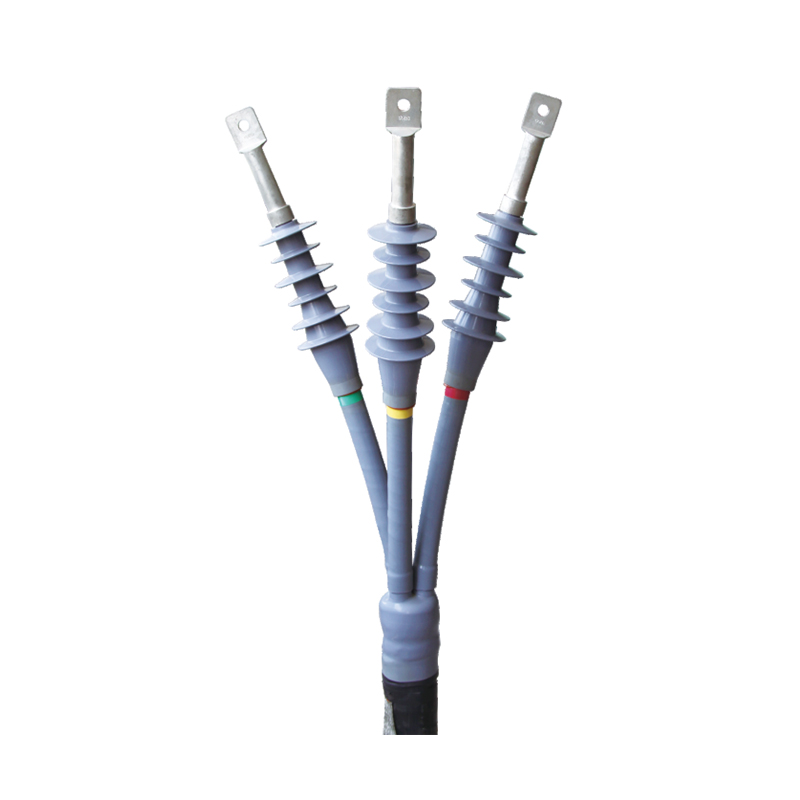

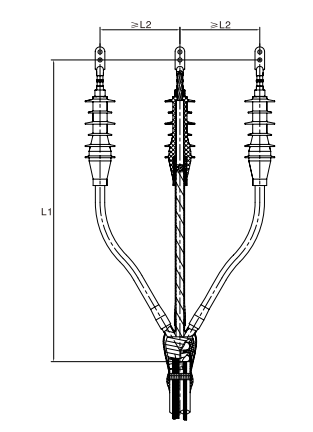

Three-core Outdoor Termination WYZ3- Voltage-Cross-section

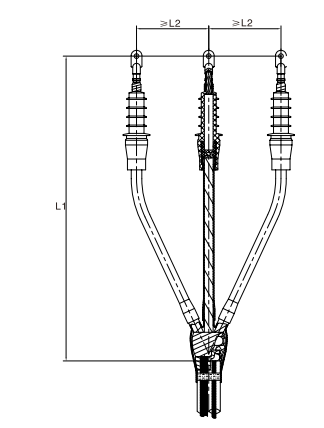

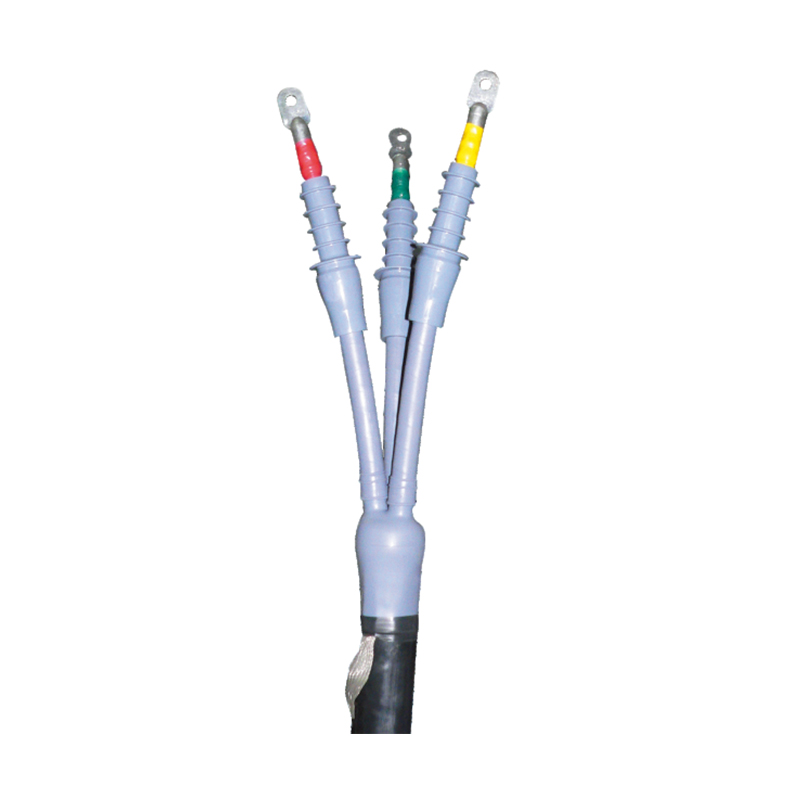

Three-core Indoor Termination NYZ3- Voltage-Cross-section

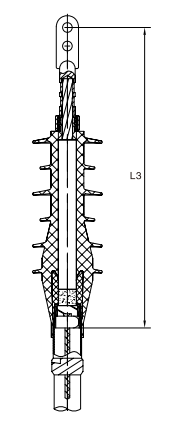

Single-core Outdoor Termination WYZ1- Voltage-Cross-section
Single-core Indoor Termination NYZ1- Voltage-Cross-section

Product Features:

Manufactured using special liquid silicone rubber, internally compounded with dedicated stress cones, capable of effectively dispersing the electric field at the outer shield break of the termination, delivering outstanding performance.
