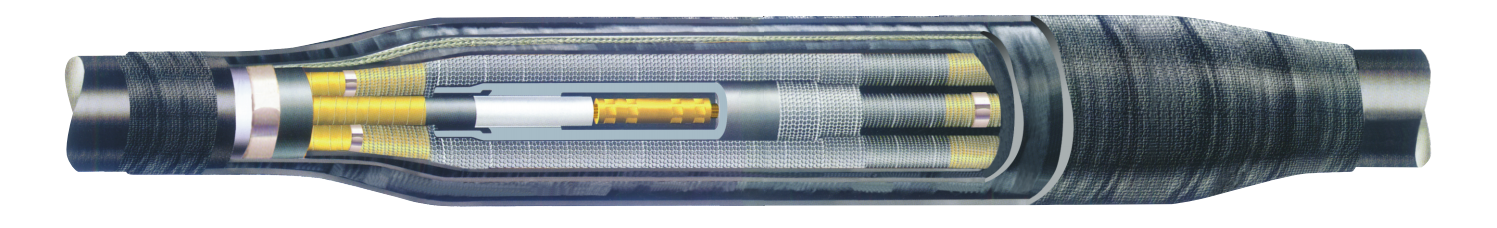

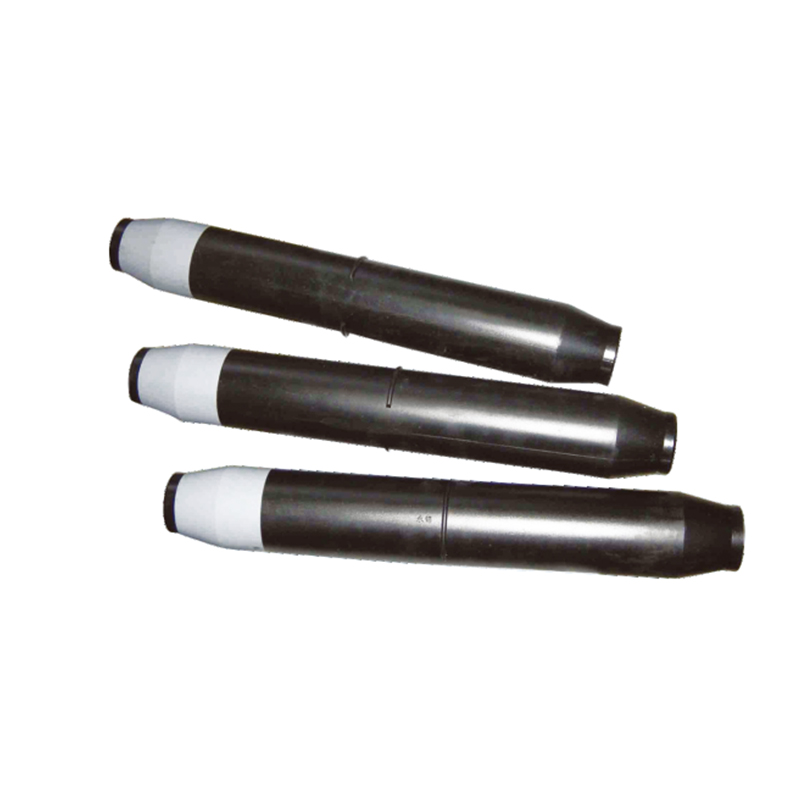

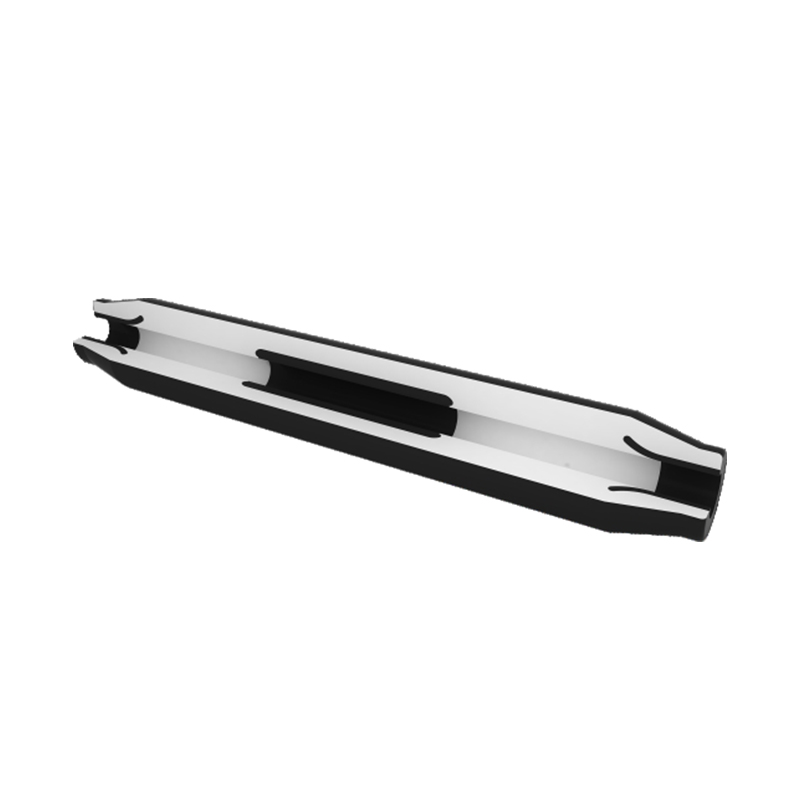

1-35kV Cold-Shrinkable Cable Intermediate Joint

Medium Voltage Cable Accessories and MV Cable Accessories, including Cable Connection Joint solutions, are widely used in power distribution systems to ensure safe, stable, and reliable electrical connections across medium-voltage networks.
Standards Compliance:
IEC 60502-4: "Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1.2 kV) up to 30 kV (Um = 36 kV) - Part 4: Test requirements on accessories for cables with rated voltages from 6 kV (Um = 7.2 kV) up to 30 kV (Um = 36 kV)"
GB/T 12706.4: "Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1.2 kV) up to 35 kV (Um = 40.5 kV) - Part 4: Test requirements on accessories for cables with rated voltages from 6 kV (Um = 7.2 kV) up to 35 kV (Um = 40.5 kV)"
JB/T 10740.2: "Cold-shrinkable accessories for power cables with extruded insulation for rated voltages from 6 kV (Um = 7.2 kV) to 35 kV (Um = 40.5 kV) - Part 2: Straight joints"
T/CEC 118: "Technical specification for cold-shrinkable cable accessories for rated voltages up to and including 35 kV"

Application Scope:
Rated Voltage: 0.6/1 kV, 8.7/15 kV, 12/20 kV, 18/20 kV, 18/30 kV, 26/35 kV
Applicable Cross-Section: 25~630 mm²
Altitude: 0-4500 meters
Ambient Temperature: -40°C to +45°C

Product Models:
Three-core Intermediate Joint: JLS3-voltage-cross-section
Single-core Intermediate Joint: JLS1-voltage-cross-section
Single-core Insulated Intermediate Joint: JLS1-JY-voltage-cross-section
Multi-core Intermediate Joint: JLSnumber of cores-voltage-cross-section

Product Features:

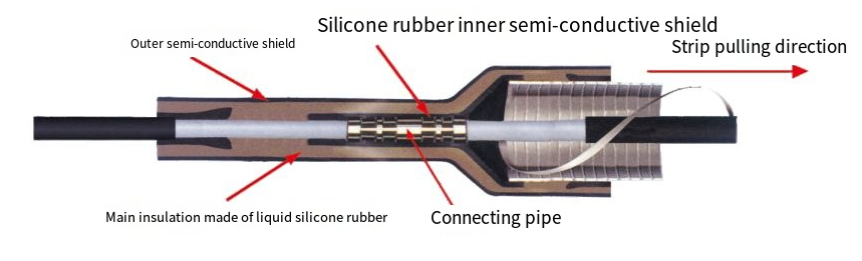

Liquid Silicone Rubber Injection Molding: Provides constant shrinkage pressure on the cable body, allowing it to "breathe" with the cable, resulting in low partial discharge.
Waterproof Insulation Tape: Restores the inner and outer sheaths with reliable sealing.
Special "Armor Tape": Offers external protection and ease of installation.
Versatile Applications: Suitable for intermediate connections in rubber and plastic insulated power cables, including harsh environments such as mines and underwater.
35 kV Single-core Joints: Please specify whether you need a through-type or insulated type when ordering.
For any further assistance or customization, please contact our technical support team.
