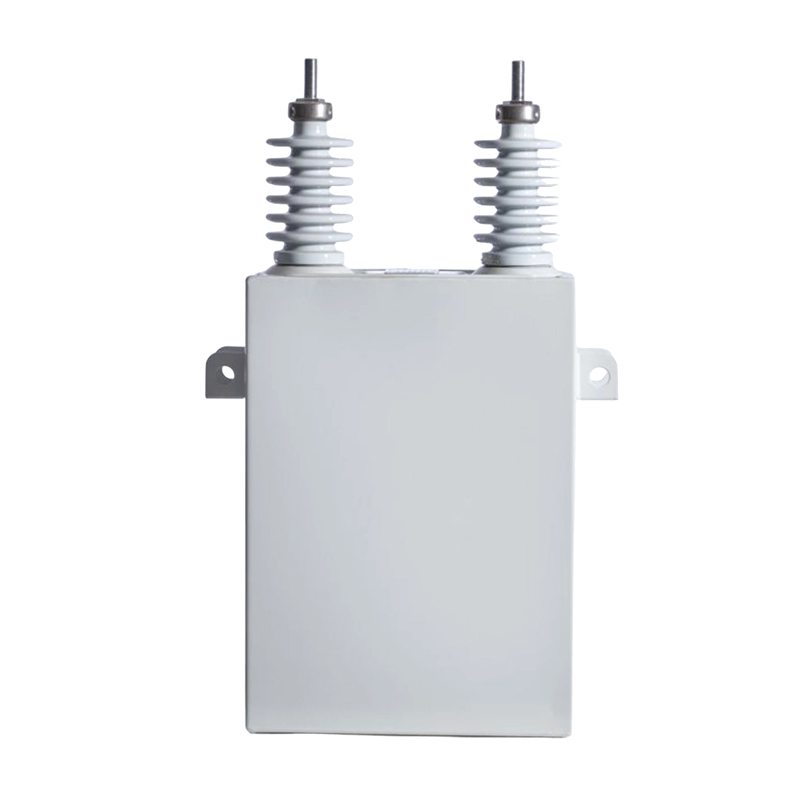

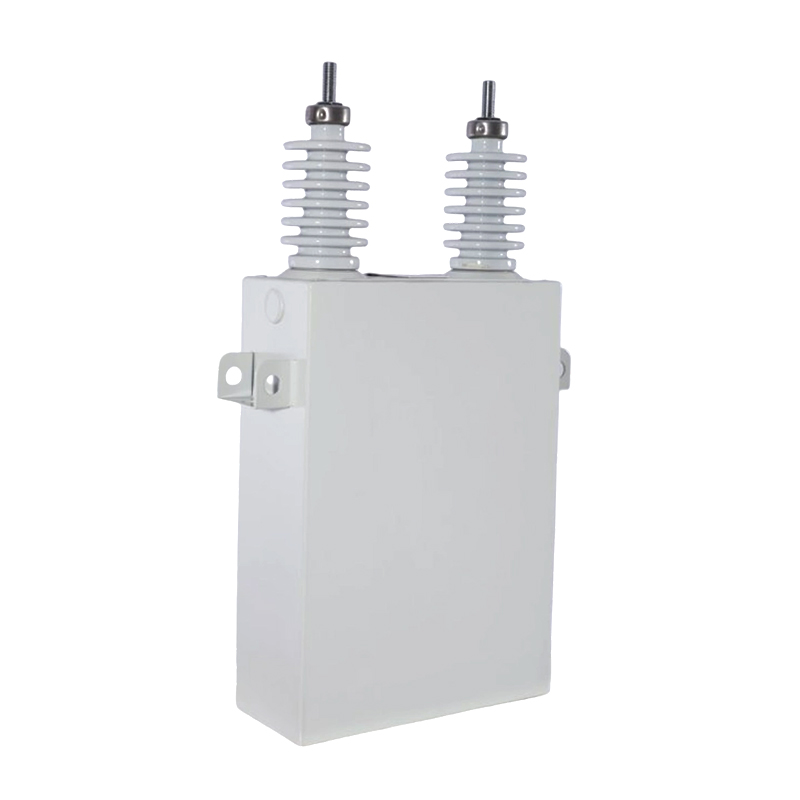

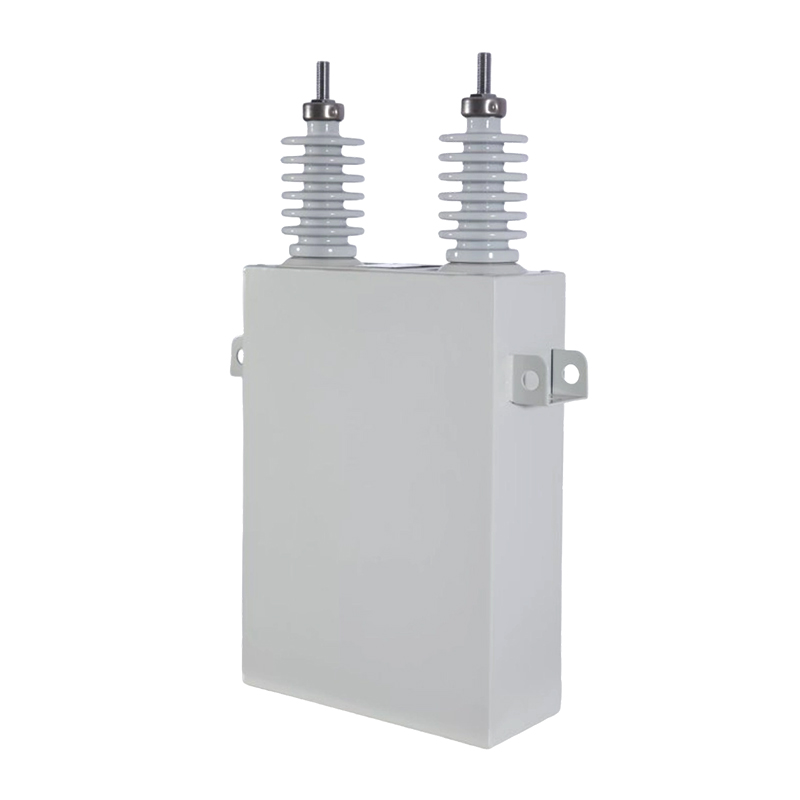

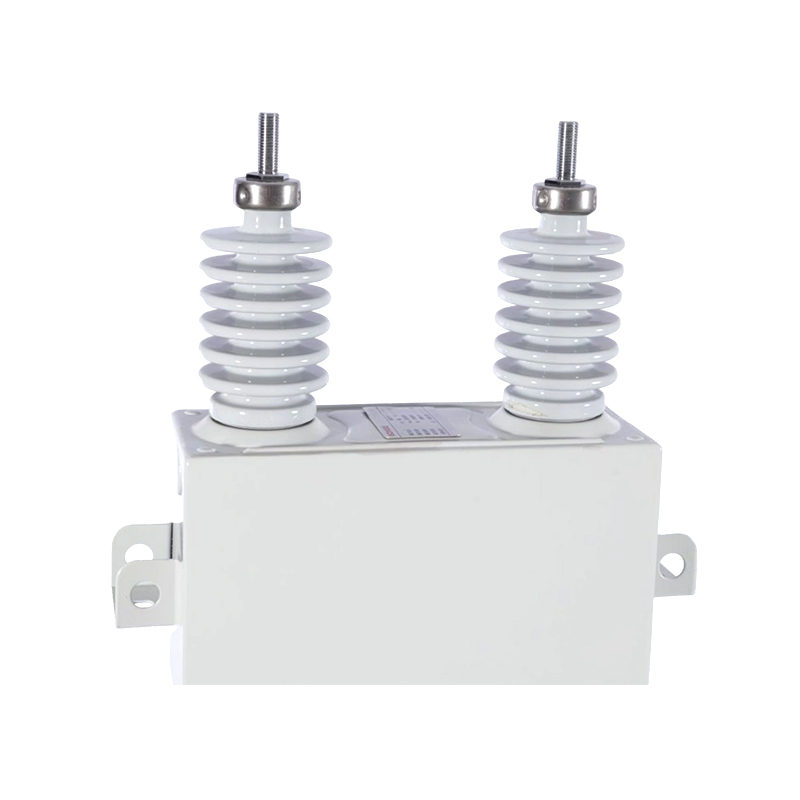

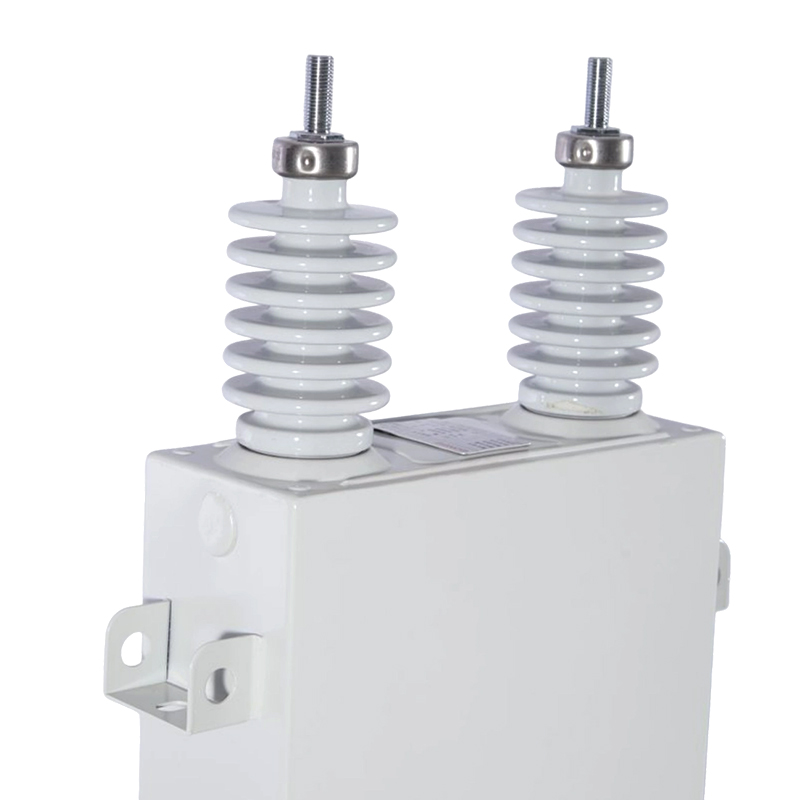

IEC Certified HV Parallel Capacitor Bank - Power Grid Supplier

Features:

High-quality high voltage capacitor designed for power transmission, distribution, and industrial power systems. Power Grid-Proven Porcelain Material：Electrical porcelain shed with excellent high-voltage resistance and anti-pollution performance, widely adopted in power grid projects globally.
Stable & Durable：10-20 years lifespan in harsh industrial/power grid environments, resistant to UV, temperature changes, and chemical corrosion.
Global Compliance：IEC 60871 certified, fully meets power grid standards for Europe, Asia, Africa, etc. As a trusted partner of State Grid, we ensure reliable quality and on-time delivery for global clients.

Yongjin Capacitor Co., Ltd. supplies high tension capacitors, HT capacitors, and HT power capacitors manufactured in China under the Eonge brand.

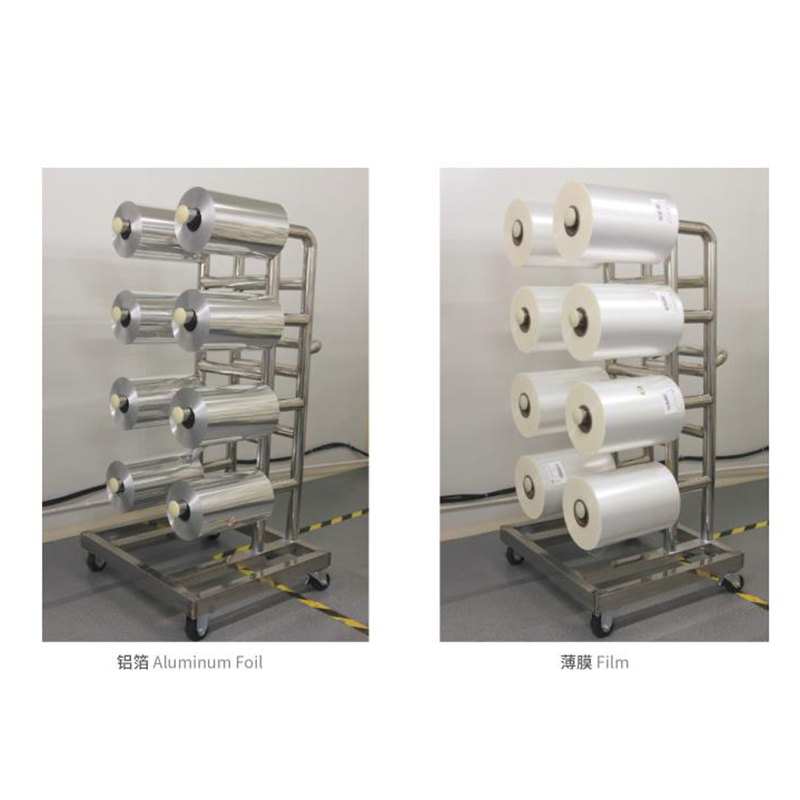

Our Eonge HT power capacitors adopt high-quality polypropylene film as dielectric and high- purity aluminum foil as electrodes. Each capacitor unit is assembled with multiple capacitor elements in series or parallel configurations, available with or without internal fuses. All elements feature edge folding, extended foil construction and robust edge soldering technologies to greatly prolong service life. The units are impregnated with M/DBT PCB-free oil, enabling stable operation with low heat generation for both indoor and outdoor applications.

Contact Us
PREV：No previous article
NEXT：No next article


  • The unit product specifications are serialized and standardized, making wiring simple, convenient for user maintenance and replacement, and enabling better service for users.

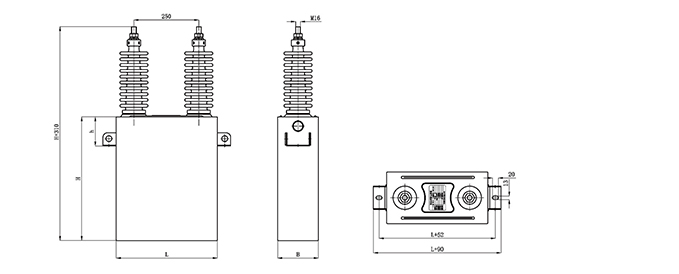

    No. Model Rated Voltage (kV) Rated Capacity (kvar) Rated Capacitance (μF) L (mm) W (mm) H (mm) D (mm)
    1 BAM11/√3-100-1W 11/√3 100 7.89 380 140 250 130
    2 BAM11/√3-200-1W 11/√3 200 15.78 380 140 475 130
    3 BAM11/√3-334-1W 11/√3 334 26.36 380 180 575 130
    4 BAM11/√3-417-1W 11/√3 417 32.91 380 180 675 220
    5 BAM11/√3-500-1W 11/√3 500 39.46 380 180 800 220
    6 BAM12/√3-100-1W 12/√3 100 6.63 380 140 250 130
    7 BAM12/√3-200-1W 12/√3 200 13.26 380 140 475 130
    8 BAM12/√3-334-1W 12/√3 334 22.15 380 180 575 130
    9 BAM12/√3-417-1W 12/√3 417 27.65 380 180 675 220
    10 BAM12/√3-500-1W 12/√3 500 33.16 380 180 800 220
    11 BAM11/2-334-1W 11/2 334 35.15 380 180 575 130
    12 BAM12/2-334-1W 12/2 334 29.53 380 180 575 130
    13 BAM11/2-417-1W 11/2 417 43.88 380 180 700 220
    14 BAM12/2-417-1W 12/2 417 36.87 380 180 700 220
    15 BAM11/2-500-1W 11/2 500 52.61 380 180 825 220
    16 BAM12/2-500-1W 12/2 500 44.21 380 180 825 220
    17 BAM11-417-1W 11 417 10.97 380 180 700 220
    18 BAM12-417-1W 12 417 9.22 380 180 700 220
    19 BAM11-500-1W 11 500 13.15 380 180 800 220
    20 BAM12-500-1W 12 500 11.05 380 180 800 220


    Notes:

    For rated capacity exceeding 600kvar, contact us for specific dimensions.

    For other special products, contact us for specific dimensions.

    For capacitors with the same rated voltage and similar rated capacity (kVar), the overall dimensions may refer to the standard series product dimensions specified in the table above. For detailed specifications, please contact our company directly.


    Eonge HT Power Capacitors Technical Specification

    Parameter Item

    Parameter Value

    RATED OUTPUT

    As per requirement

    RATED VOLTAGE

    1kV-24kV

    PHASES

    Single or Three Phases

    FREQUENCY

    50 / 60 HZ

    CONNECTION

    Star or Delta

    PROTECTION

    Fuses (I/E)

    MOUNTING

    Vertical / Horizontal

    SAFETY

    Discharge resistor fitted internally

    INSTALLATION

    Indoor / Outdoor

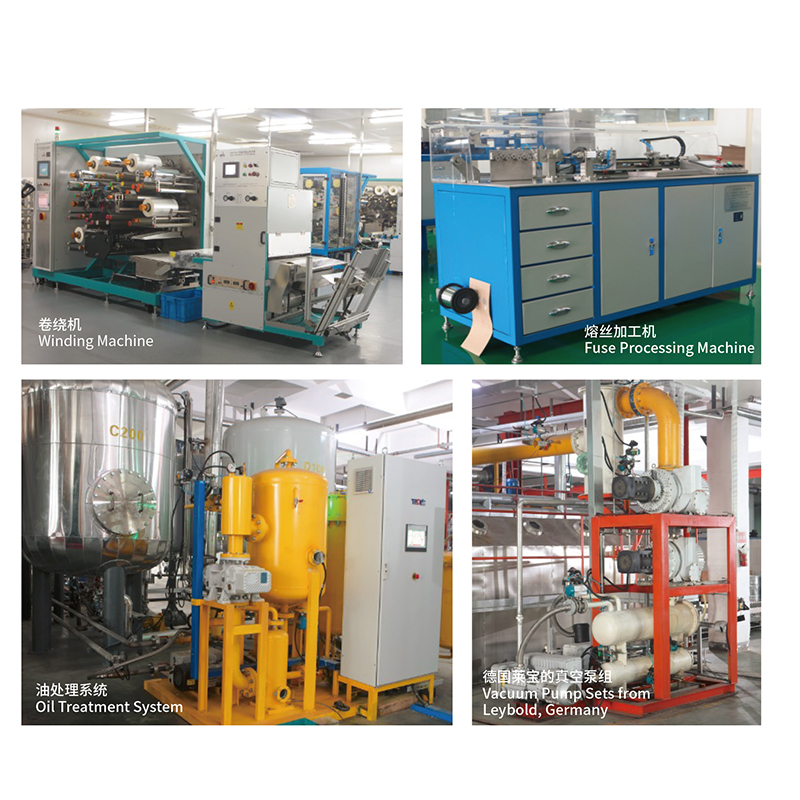

    Enterprise Qualification

    As a certified premium supplier of China State Grid and China Southern Power Grid, we provide   consistently reliable product quality, stable on-time delivery and highly competitive prices for global partners.

    Single-phase full film capacitor with foil-exposed structure, low loss, and long service life;

    Aluminum foil with folded edges to alleviate power line concentration;

    Product Standardization - Capacitor length is fixed, width is classified into two grades, and product height is designed with step increments. The position and dimensions of the lifting lugs are also set with step increments based on product structure, configuration,n, and installation requirements, to achieve product serialization and standardization.

    Internal fuse protection mode is preferred for capacitor element protection. The internal fuse is installed between two capacitor elements, with an insulating liner provided between the fuse and adjacent elements to prevent damage to the latter in the event of fuse operation, thereby significantly enhancing the operational reliability of the capacitor.

    Discharge resistors are configured between each series section of the capacitor winding. These resistors fully eliminate DC overvoltage across the elements, mitigate the adverse effects of combined DC and AC overvoltage resulting from internal fuse operation on high-voltage internally fused capacitors, and enhance the operational safety and stability of the capacitor.

    The capacitor unit has an extremely low failure rate and high reliability.

    Certifications:



    • Send Now

Related Products

Certificate Of Honor

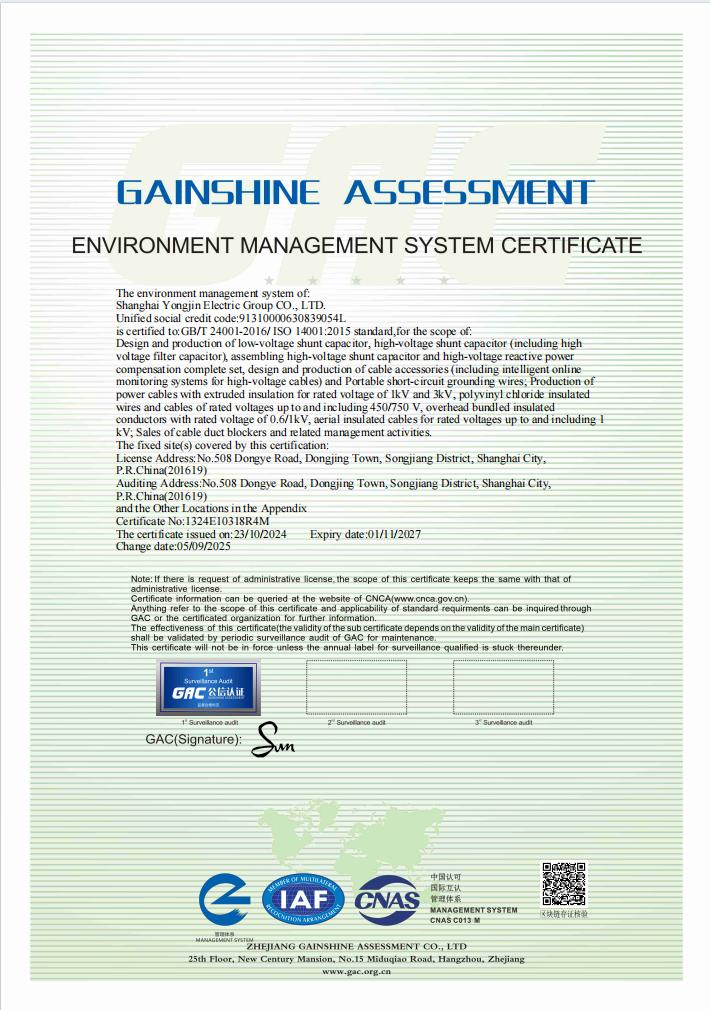

  • Environment management system certificate
  • Environment management system certificate

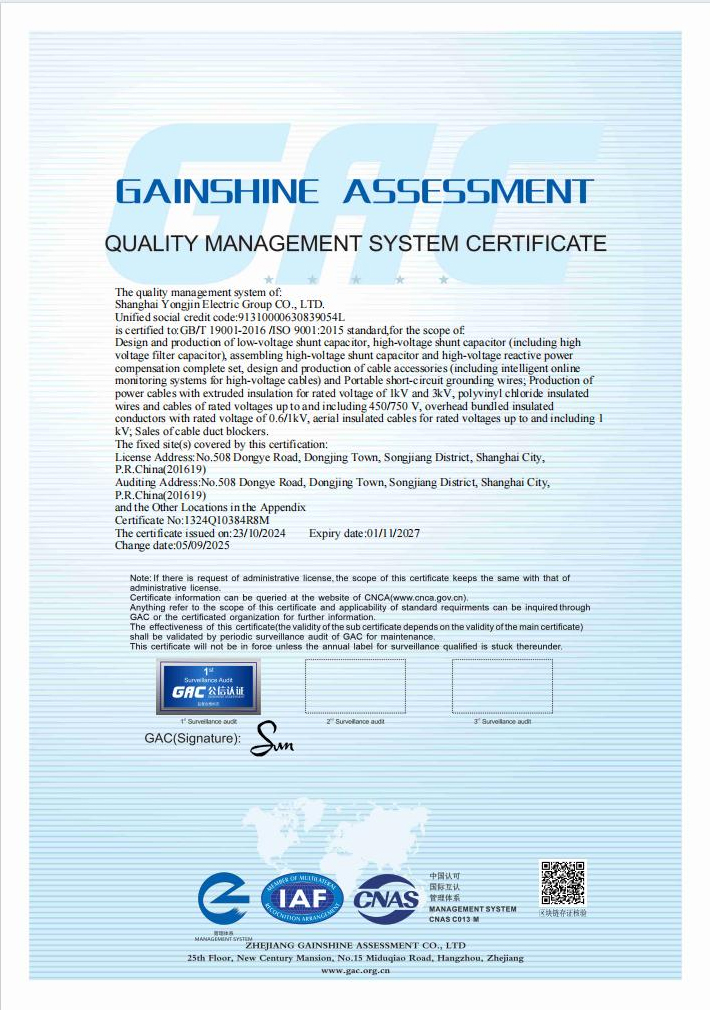

  • Quality management system certificate

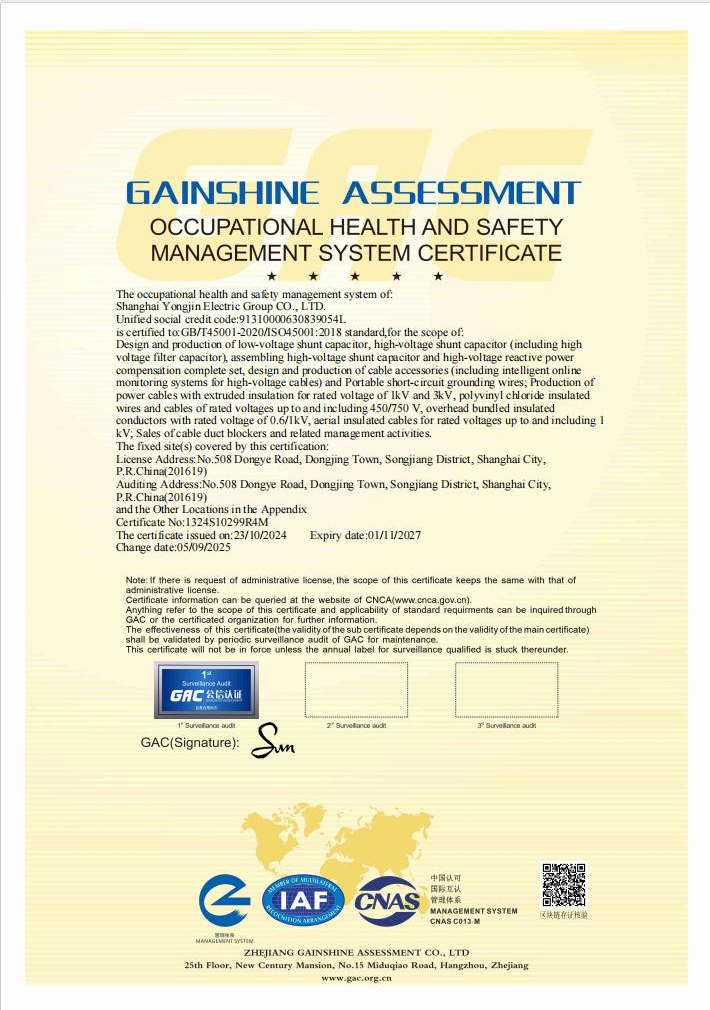

  • Occupational health and safety management system certificate
