Provides reactive power compensation and improves grid stability.

High Voltage Capacitors Equipment

High Voltage Parallel Capacitor Complete Set

Features:

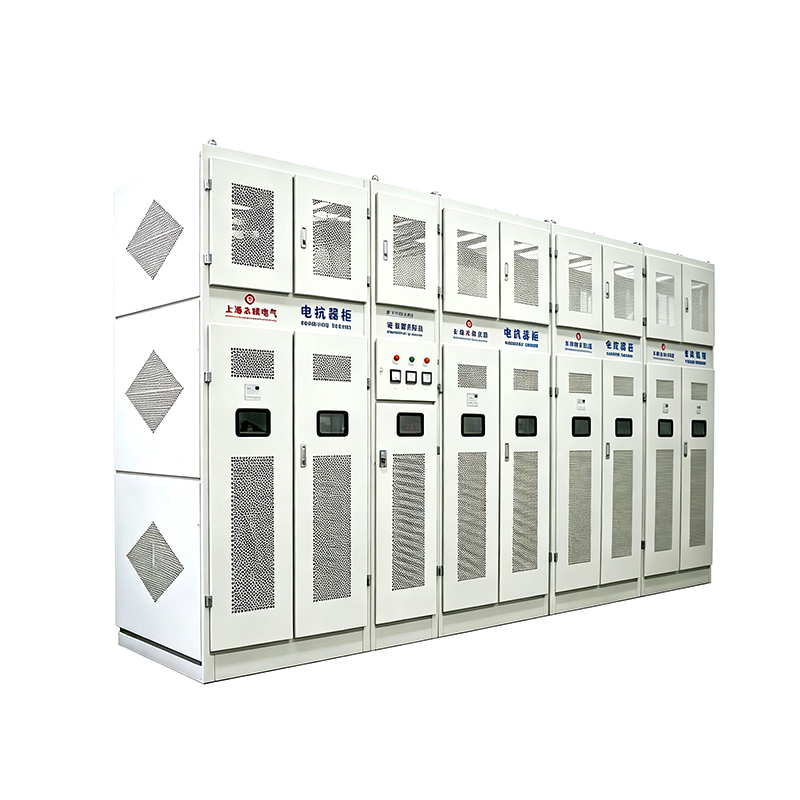

The High Voltage Parallel Capacitor Complete Set is designed for reactive power compensation in industrial frequency three-phase AC power systems, helping improve power factor, reduce line losses, and enhance grid voltage quality. As a complete HV Capacitor Bank solution, it integrates shunt capacitors, series reactors, surge arresters, discharge devices, fuses, switches, and control components.

The standardized structure supports indoor cabinet and outdoor framework configurations, with flexible single-layer, multi-layer, single-row, or double-row arrangements according to installation requirements. Featuring compact design, convenient maintenance, reliable protection, and stable operation, it is widely used in substations and power grid improvement projects.

PREV：Assembled High Voltage Shunt Capacitor Complete Set
NEXT：No next article

Parameter

High voltage parallel capacitor device (indoor cabinet type) technical parameter table

Serial number	Model Specifications	Rated Voltage kV	Rated capacity kvar	Supporting capacitor unit model	Overall dimensions (mm)			Figure No.
Serial number	Model Specifications	Rated Voltage kV	Rated capacity kvar	Supporting capacitor unit model	L	W	H	Figure No.
1	TBB10-600/200AK	10	600	BAM11(12)/3-200-1W	2400	1500	2500	1
2	TBB10-1000/334AK		1000	BAM11(12)//3-334-1W	2400	1500	2500
3	TBB10-1200/200AK		1200	BAM11(12)/3-200-1W	3000	1500	2500
4	TBB10-1500/250AK		1500	BAM11(12)//3-250-1W	3000	1500	2500
5	TBB10-2000/334AK		2000	BAM11(12)//3-334-1W	3000	1500	2500
6	TBB10-3000/334AK		3000	BAM11(12)/√3-334-1W	3600	1500	2500
7	TBB10-3600/200AK		3600	BAM11(12)/3-200-1W	4200	1500	2500
8	TBB10-4000/334AK		4000	BAM11(12)//3-334-1W	3600	1500	2500
9	TBB10-4800/200AK		4800	BAM11(12)/√3-200-1W	4600	1500	2500
10	TBB10-5000/417AK		5000	BAM11(12)/√3-417-1W	3600	1500	2500
11	TBB10-6000/334AK		6000	BAM11(12)/√3-334-1W	4200	1500	2500
12	TBB10-6000/334AC		6000	BAM11(12)/2√3-334-1W	4600	1500	2500	2
13	TBB10-8000/334AC		8000	BAM11(12)/2√3-334-1W	5000	1700	2500
14	TBB10-10000/417AC		10000	BAM11(12)/2√3-417-1W	5000	1700	2500
15	TBB10-12000/500AC		12000	BAM11(12)/2 √3-500-1W	5000	1700	2500
16	TBB10-4800/200BL		4800	BAM11(12)/√3-200- 1W	4600	1500	2500
17	TBB10-6000/334BL		6000	BAM11(12)/√3-334- 1W	4600	1500	2500
18	TBB20-4800/200AK	20	4800	BAM22(24)/√3-200- 1W	5000	1800	3000	3
19	TBB20-6000/334AK		6000	BAM22(24)/√3-334-1W	4200	1800	3000
20	TBB20-8000/334AK		8000	BAM22(24)/√3-334-1W	5400	1800	3000
twenty one	TBB20-4800/200AC		4800	BAM11(12)/√3-200-1W	5000	1800	3000
twenty two	TBB20-6000/334AC		6000	BAM11(12) /√3-334-1W	4200	1800	3000
twenty three	TBB20-10000/417AC		10000	BAM11(12)/√3-417- 1W	5600	1800	3000
twenty four	TBB20-8000/334BL		8000	BAM22(24)/√3-334-1W	5400	1800	3000

Note:

1. The reactance ratio of the reactor is 1%, 5%, and 12%.

2. The unit capacitors in the 20kV device can be selected from the 10kV or 20kV voltage series.

High voltage parallel capacitor device (indoor frame type) technical parameter table

Serial number	Model Specifications	Rated Voltage kV	Rated capacity kvar	Supporting capacitor unit model	Dimensions (mm)		Figure No.
Serial number	Model Specifications	Rated Voltage kV	Rated capacity kvar	Supporting capacitor unit model	L	W	Figure No.
1	TBB10-600/200AK	10	600	BAM11(12)/3-200-1W	3600	2000	4
2	TBB10-1000/334AK		1000	BAM11(12)/3-334-1W	3600	2000
3	TBB10-1200/200AK		1200	BAM11(12)/√3-200-1W	4000	2000
4	TBB10-1500/250AK		1500	BAM11(12)/3-250-1W	4000	2000
5	TBB10-2000/334AK		2000	BAM11(12)/3-334-1W	4000	2000
6	TBB10-3000/334AK		3000	BAM11(12)/3-334-1W	4400	2000
7	TBB10-3600/200AK		3600	BAM11(12)/3-200-1W	4800	2000
8	TBB10-4000/334AK		4000	BAM11(12)/3-334-1W	4400	2000
9	TBB10-4800/200AK		4800	BAM11(12)/√3-200-1W	5000	2000
10	TBB10-5000/417AK		5000	BAM11(12)/3-417-1W	4400	2000
11	TBB10-6000/334AK		6000	BAM11(12)/√3-334-1W	4800	2000
12	TBB10-6000/334AC		6000	BAM11(12)/2√3-334-1W	5000	2000	5
13	TBB10-8000/334AC		8000	BAM11(12)/2√3-334-1W	5400	2000
14	TBB10-10000/417AC		10000	BAM11(12)/2√3-417-1W	6000	2000
15	TBB10-12000/500AC		12000	BAM11(12)/2 √3-500-1W	6000	2000
16	TBB10-4800/200BL		4800	BAM11(12)/3-200-1W	5000	2000
17	TBB10-6000/334BL		6000	BAM11(12)/3-334-1W	5200	2000
18	TBB35-5000/417AC	35	5000	BAM11(12)/2-417-1W	9000	3000	6
19	TBB35-6000/500AC		6000	BAM11(12)/2-500-1W	9000	3000
20	TBB35-8000/334AC		8000	BAM11(12)/2-334-1W	9000	4000
twenty one	TBB35-10000/417AC		10000	BAM11(12)/2-417-1W	9000	4000
twenty two	TBB35-20000/417AC		20000	BAM11(12)/2-417-1W	11000	4000
twenty three	TBB35-8000/334BL		8000	BAM11(12)/2-334-1W	9000	4000
twenty four	TBB35-20000/417BL		20000	BAM11(12)/2-417-1W	11000	4000

Note:

1. The reactance rate of the reactor is selected as 1%, 5%, and 12%;

2. The unit capacitors in the 20kV device can be selected from the 10kV or 20kV voltage series;

3. The above data is for reference only and can be modified according to site requirements.

High voltage parallel capacitor device (outdoor frame type) technical parameter table

Serial number	Model Specifications	Rated voltage kV	Rated capacity kvar	Supporting capacitor unit model	Dimensions (mm)		Figure No.



					L	W
1	TBB10-600/200AKW	10	600	BAM11(12)/3-200-1W	4200	3200	7


2	TBB10-1000/334AKW		1000	BAM11(12)/3-334-1W	4400	3400
3	TBB10-1200/200AKW		1200	BAM11(12)/√3-200-1W	4400	3400
4	TBB10-1500/250AKW		1500	BAM11(12)/3-250-1W	4400	3400
5	TBB10-2000/334AKW		2000	BAM11(12)/3-334-1W	4800	3200
6	TBB10-3000/334AKW		3000	BAM11(12)/3-334-1W	4800	3200
7	TBB10-3600/200AKW		3600	BAM11(12)/3-200-1W	5000	3200
8	TBB10-4000/334AKW		4000	BAM11(12)/√3-334-1W	4800	3400
9	TBB10-4800/200AKW		4800	BAM11(12)/√3-200- 1W	5600	4000
10	TBB10-5000/417AKW		5000	BAM11(12)/√3-417-1W	4800	3400
11	TBB10-6000/334AKW		6000	BAM11(12)/√3-334-1W	5600	4000
12	TBB10-6000/334ACW		6000	BAM11(12)/2/√3-334-1W	5600	4000
13	TBB10-8000/334ACW		8000	BAM11(12)/2√3-334-1W	5800	4000
14	TBB10-10000/417ACW		10000	BAM11(12)/2√3-417-1W	6000	4000
15	TBB10-12000/500ACW		12000	BAM11(12)/2√3-500-1W	6000	4000
16	TBB10-4800/200BLW		4800	BAM11(12)/√3-200-1W	5600	4000	8
17	TBB10-6000/334BLW		6000	BAM11(12)/√3-334-1W	5600	4000	8
18	TBB35-5000/417ACW	35	5000	BAM11(12)/2-417-1W	6000	8000	9
19	TBB35-6000/500ACW		6000	BAM11(12)/2-500-1W	6000	8000
20	TBB35-8000/334ACW		8000	BAM11(12)/2-334-1W	7000	8000
twenty one	TBB35-10000/417ACW		10000	BAM11(12)/2-417-1W	7000	8000
twenty two	TBB35-20000/417ACW		20000	BAM11(12)/2-417-1W	7000	8000
twenty three	TBB35-40000/417AQW		40000	BAM11(12)/2-417-1W	8000	8000
twenty three	TBB35-40000/417AQW		40000	BAM11(12)/2-417-1W	8000	8000
twenty four	TBB35-60000/500AQW		60000	BAM11(12)/2-500-1W	8000	8000	10
25	TBB35-20000/417BLW		20000	BAM11(12)/2-417-1W	8000	5000
26	TBB35-60000/500BLW	35	60000	BAM11(12)/2-500-1W	10000	5000	11
27	TBB66-10000/417ACW	66	10000	BAM10.5(11.5)-417-1W	8000	8000	12
27	TBB66-10000/417ACW		10000	BAM10.5(11.5)-417-1W	8000	8000
28	TBB66-30000/417ACW		30000	BAM10.5(11.5)-417-1W	8000	8000
29	TBB66-60000/500AQW		60000	BAM10.5(11.5)-500-1W	8000	9000
30	TBB66-120000/500AQW		120000	BAM10.5(11.5)-500-1W	9000	12000

Note:

1. The reactance rate of the reactor is selected as 1%, 5%, and 12%;

2. The unit capacitors in the 20kV device can be selected from 10kV or 20kV voltage series;

3. The above data is for reference only and can be modified according to site requirements.
