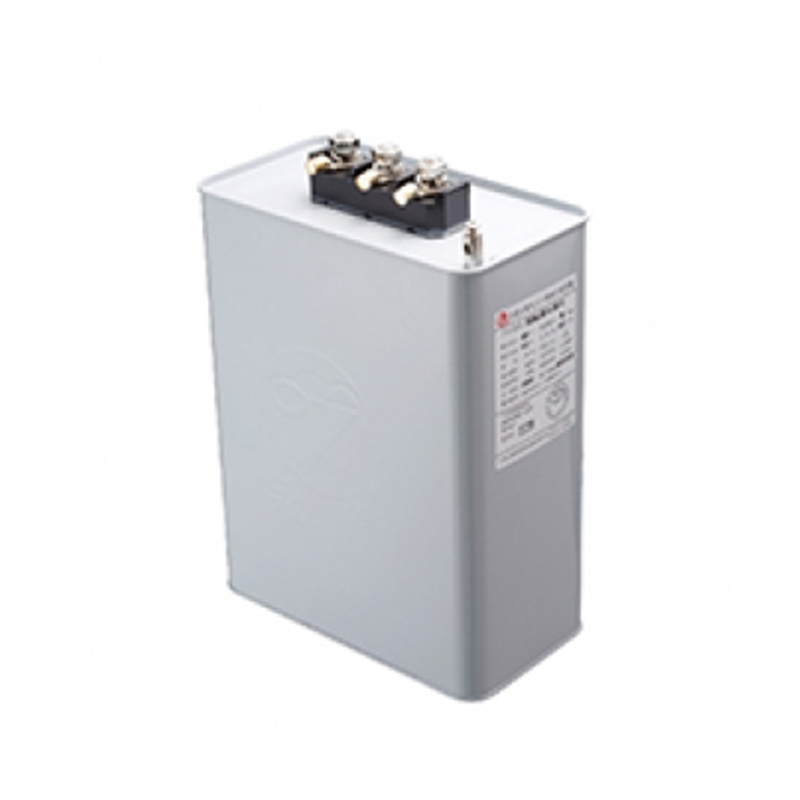

H-BSMJ Low Voltage Shunt Power Capacitor

Model

Rated voltage

Rated Capacity

Capacitance

Rated current

Type A

Type B

KV

KVar

μF

A

type

H

type

D

H

250V split phase compensation

BSMJ0.25-10-3YN-□

0.25

10

509.3

13.3

A1

215

B1

116

250

BSMJ0.25-15-3YN-□

0.25

15

763.9

20

A3

230

B1/B2

116

250

BSMJ0.25-20-3-□1

0.25

20

1018.6

26.7

A3

270

B2/B1

116

290

BSMJ0.25-25-3-□

0.25

25

1273.2

33.3

/

/

B2/B1

136

290

450V three-phase compensation

BSMJ0.45-10-3-□

0.45

10

157.2

12.8

A1

215

B1

86

240

BSMJ0.45-15-3-□

0.45

15

235.8

19.2

A3

215

B1/B2

116

250

BSMJ0.45-20-3-□1

0.45

20

314.4

25.7

A3

270

B2/B1

116

290

BSMJ0.45-25-3-□

0.45

25

393.0

32.1

A3

270

B2/B1

136

250

BSMJ0.45-30-3-□

0.45

30

471.6

38.5

/

/

B2/B1

136

290

Model

Rated voltage

Rated Capacity

Capacitance

Rated current

A

B

H

Type

KV

KVar

μF

A

mm

mm

mm

250V split phase compensation

BSMJ0.25-30-3YN-C2

0.25

30

1528

40

365

125

285

C2

BSMJ0.45-40-3YN-C2

0.25

40

2037

53.3

365

125

320

C2

450V three-phase compensation

BSMJ0.45-40-3-C2

0.45

40

629

51.3

365

125

320

C2

BSMJ0.45-50-3-C2

0.45

50

786

64.2

365

125

360

C2
